Design Rationale

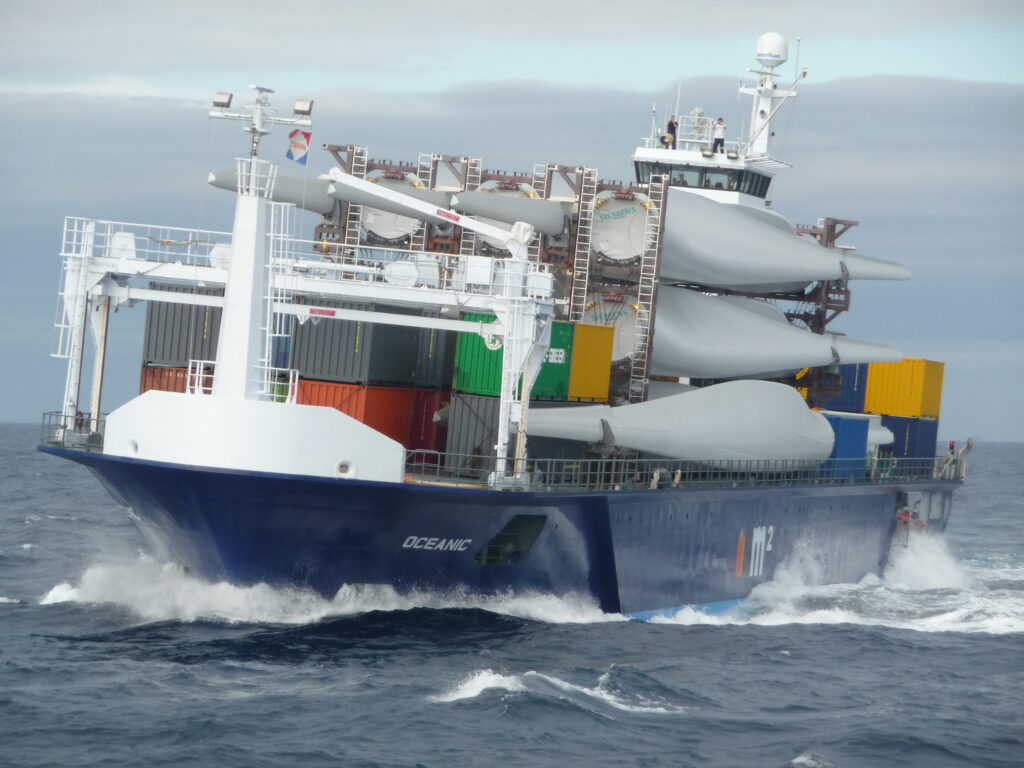

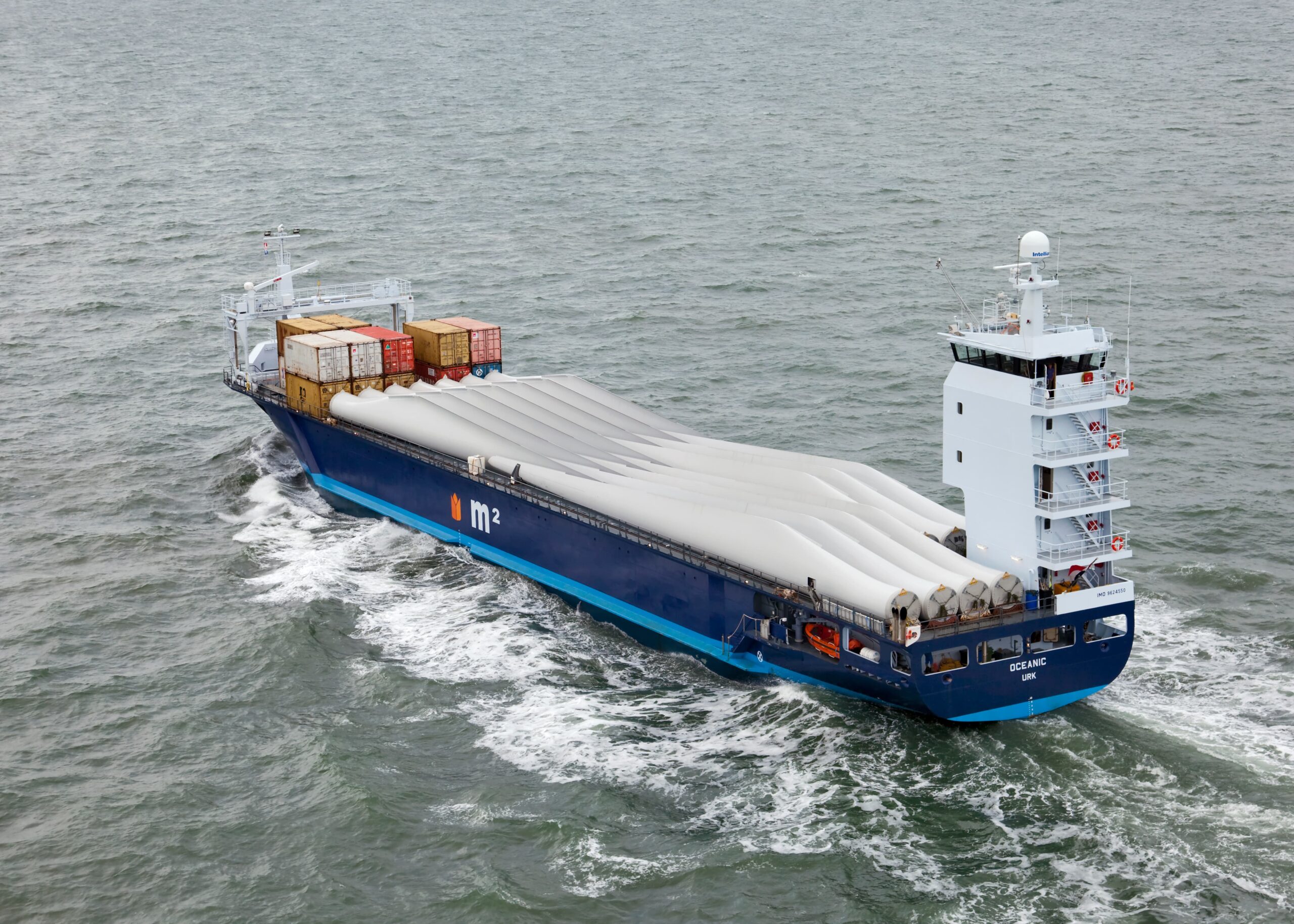

In close conjunction with Hartman Marine BV, Conoship developed the Hartman M2 Runner, a flexible and spacious general cargo / project cargo vessel for the short sea market. Flexibility, (fuel) efficiency and a maximisation of the deck area were the leading aspects to be taken into account. The deck area and hold volume have been maximised within the 3,000 GT limit, enabling the vessel to transport oversized offshore plants and windmill equipments. After extensive tank testing at MARIN, the M2 Runner received the class notation “Open-Top” . This feature is usually not feasible with vessels of this size, but only permitted with vessels much larger than the Hartman M2 Runner. The ‘Oceanic’ is also an environmentally friendly vessel. Featuring an integrated nozzle and a relatively large propeller, the M2 Runner is a very fuel efficient vessel. With an installed power of 1200kW, a service speed of about 12 knots is reached.

PRINCIPAL PARTICULARS
Length over all92.90 m
Length between p.p.84.99 m
Breadth moulded14.00 m
Depth10.00 m
Draught (summer)5.00 m
Deadweight3285 ton
Gross tonnage2979
Speed (service)12 kn
EQUIPMENT
Main engine1200 kW
Shaft generator300 kW
Auxiliary engines (2)300 kW
Bow thruster300 kW
Stern thruster250 kW
HOLD PARTICULARS
Hold dimensions Upper Hold53.90 x 12.00 x 3.20/3.960 m
Hold dimensions Lower Hold69.30 x 12.50 x 4.60/3.90 m
Tank top area635 m2
Tweendeck area830 m2
Deck length x breadth90 x 15 m
Deck area1300 m2
Cargo hold capacity (total)219200 cb.ft
Container capacity (total)105 hold – 199 deck TEU
CAPACITIES
Marine gasoil233 m3
Potable water70 m3
Ballast water1770 m3
